    HC-OE120-OP

    • Weight:
    • Brand :
    • No.:

    HC-OE120-OP optical terminalOverviewFor now, the reliability of circuits becomes more and more important for operators and users. “1+1” line protection can increase circuits reliability, but some

    1. Detailed information

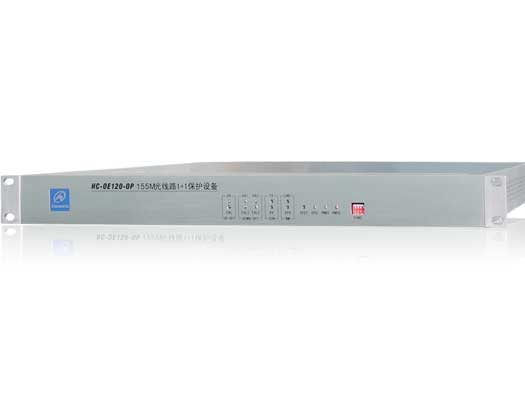

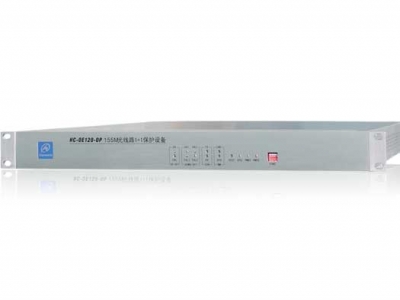

    HC-OE120-OP optical terminal


    Overview
    For now, the reliability of circuits becomes more and more important for operators and users. “1+1” line protection can increase circuits reliability, but some SDH devices do not have this function, it will cost much for them to buy another set of SDH device to realize this. The HC-OE120-OP 155M transmit protection device is one of the economical solution for this. It is easy to use and cost much lower, also it supports CLI and SNMP network management.



    Feature
    small size, low power dissipation, high reliability
    Provides 1+1 protection for lines, switching time less than 50ms
    Perfect alarm indication
    Can be managed by the management software HCView in the center office
    CLI for easy monitoring and setup
    1+1 backup power
    1U-height compact-size design

    Specification

    Optical port:
    Fiber type: single mode or multimode (can be ordered by user)
    Emit power: >-14dBm (LED)
    Line code: STM-1/155.52MHZ
    Receive sensitivity: <-36dBm
    Optical link rate: 16.896Mbps~155.52Mbps
    Connector: SC/FC

    Network management port:
    Interface type: 10/100Base-T
    Rate: 10/100Mbps
    Connector: RJ45

    Console port:
    Comply with RS232-C/ITU-T V.24
    Configure: 9600bps, 8-bit data, 1-bit stop, no data stream.
    Connector: RJ45
    Power supply
    Provide both DC -48V and AC 220V
    Power dissipation: <10W
    Environment:-5~+45
    Dimension:19 inch, 1U
