    HC-ICE10-V35

    • Weight:
    • Brand :
    • No.:

    HC-ICE10-V35 Interface Converter OverviewHC-ICE10-V35 interface converter provides easy conversion from V.35 channel to standard 10/100 M Ethernet interface, and delivers Ethernet services o

    1. Detailed information

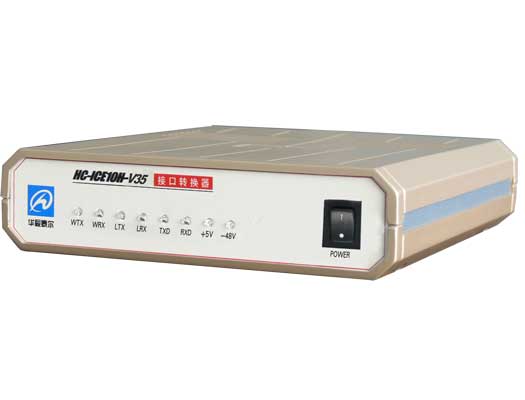

    HC-ICE10-V35 Interface Converter



    Overview

    HC-ICE10-V35 interface converter provides easy conversion from V.35 channel to standard 10/100 M Ethernet interface, and delivers Ethernet services over existing V.35 lines. It can be used widely in connecting between WAN and LAN.
    Local management of the HC-ICE10-V35 Converter is provided via DIP switch. The LED on front panel monitor the V.35 link, Ethernet LAN.

    HC-ICE10-V35 has two kinds of type, the card and the box. Generally the cards are inserted in the HC-COMM at the center side. They can be managed by the management software HCView at the center office.



    Features

    IEEE 8023,802.3u completely compatible comply with ITU-T V.35

    Transmission of Ethernet over V.35 line



    Specification

    V.35 interface:
    Data rate: N ×64Kbps (N=1~64)
    Interface type: DCE.
    Internal and external clock user-selectable
    Connector: DB25



    Ethernet interface:

    IEEE802.3 completely compatible

    Interface type: 10/100M

    MAC (LAN) table size: 10,000

    Buffer size: 256 frame

    Forwarding rate: 6000pps

    Compress type: enhanced tinygram

    Connector: RJ45



    Console port:

    RS232 console port for an ASCII terminal

    Date format: 9600bps, 8-bit data, 1-bit stop flag

    Function: software upgrade, loop configuration, status monitoring

    Connector: RJ45



    Others

    Power: Both 220V AC (165V~265V) and -48V DC (-36V~-72V)

    Power dissipation: < 6W (standalone), < 5W (card)

    Dimension: 175(W)×44(H)×200(D)mm

    Envirement

    Operating Temperature: -5°C~+45°C

    Store Temperature: -20°C~+70°C

    Relative humidity: 5%~ 95% no coagulation



    Ordering Information


    Ethernet connector

    V35 connector

    Power Supply

    Remark

    HC-ICE10-V35

    RJ45

    DB25

    Both 220V AC and -48V DC
