    HC-EPU

    • Weight:
    • Brand :
    • No.:

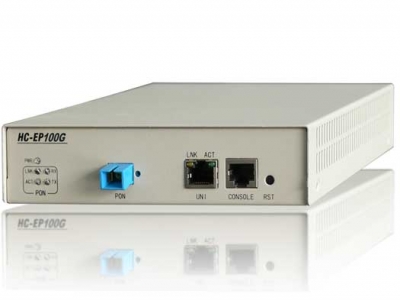

    HC-EPU Huachentel provides full range of ONU series products, including HC-EPU100 (1×100M fast Ethernet to 1×PON port), HC-EPU100G (1×Giga Ethernet to 1× PON port), HC-EPU400 (4×10

    1. Detailed information


    HC-EPU



    Huachentel provides full range of ONU series products, including HC-EPU100 (1×100M fast Ethernet to 1×PON port), HC-EPU100G (1×Giga Ethernet to 1× PON port), HC-EPU400 (4×100M fast Ethernet to 1×PON port), HC-EPU800 (8×100M fast Ethernet to 1×PON port), and HC-EPU2400 (24×100M fast Ethernet to 1×PON port).



    Features:

    True “Triple Play” service access over IEEE802.3ah compliant PON, shared with up to 64 customers.

    Up to two auto-negotiating Fast Ethernet subscriber ports for 10/100 Mbps, half-duplex/fullduplex operation.

    SNMP based network monitoring and management via HCView software, including bandwidth provisioning and status monitoring. adapter available as a customer option.

    Compact, lightweight indoor unit with optional panel mounting box with fiber splice organizer or environmentally friendly outdoor enclosure with integrated splice organizer.

    Integrated backup power management.



    Specification:



    PON port:



    EPON standard: IEEE802.3ah

    Operating wavelength

    Data RX: 1490 nm ± 10 nm

    Data TX: 1310 nm ± 20 nm

    Range: -8 ~ 0 dBm @ 1550 nm

    Nominal -5 dBm @ 1550 nm

    Data RX sensitivity: < -24 dBm @ 1490 nm

    Data RX saturation: >-3 dBm @ 1490 nm

    Data TX output: -1 ~ 4 dBm @ 1310 nm

    Line speed

    Downstream: 1.25 Gbps

    Upstream: 1.25 Gbps

    Optical connector: SC/APC, E2000/APC



    Ethernet port:

    Port qty.: 4

    Interface: Auto-negotiation,

    10/100 Mbps, full/half duplex

    IEEE802.1D: 64 MAC addresses per Ethernet port

    IEEE802-1Q: VLAN mapping to LLID

    IEEE802.1P: 7 priority queues with L2/L3/L4 classification

    Frame size: 64...1522 bytes

    Data security: Supports 128-bit AES

    Logical Link IDs: 3 x LLID

    Connectors: 2 x RJ45



    Others:

    Power supply: 220V AC

    Power interface: DC power terminal/AC socket

    Power dissipation: < 5W

    Dimension: 155(W) x38(H) x200(D) (mm)



    Environment

    Operating temperature: 0°C ~+ 40°C

    Storage temperature: -20°C ~+70°C

    Relative humidity: 5%~90% no coagulation
