      HC-ICE03-GE

      HC-ICE03-GE Gigabit Media Converter OverviewAs need for distance extension HC-ICE03-GE is a Gigabit Media Converter that supports conversion from Ethernet 1000Base-T signal to 1000Base-X signal.I

      1. 详细信息

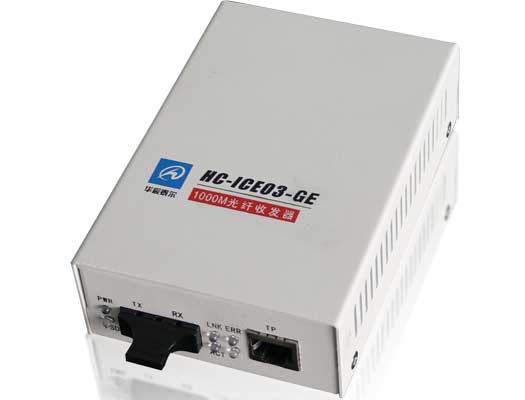

      HC-ICE03-GE Gigabit Media Converter


      Overview

      As need for distance extension HC-ICE03-GE is a Gigabit Media Converter that supports conversion from Ethernet 1000Base-T signal to 1000Base-X signal.

      It utilizes fiber optics resources to provide a 1000Mbps transparent Ethernet link from subscribers to carriers. With deployment of such media converter can make data and video access to be higher bandwidth and easier.

      HC-ICE03-GE provides both standalone and card type. Card type can be inserted HC-ICE03 chassis to work with remote standalone devices, both of these devices can be managed together by HC-ICE03 chassis through HCView.



      Features

      Standard: IEEE 802.3ab 1000Base-T,

      IEEE802.3z 1000Base-SX/LX

      Support 1518bytes frame (default) / 9600 bytes jumbo frame

      Fixed 1000M broadband media converter

      Various fiber and wavelength and different transmission distance options

      SNMP management through HCView



      Specification

      Optical Ethernet interface:

      Complied to IEEE 802.3z

      Optical port: Single / multi module optional

      Wavelength: 1310 / 1550 optional

      Transmission distance: 20/40/60 Km optional

      Connector: SC / FC optional



      Electrical Ethernet interface:

      Complied to IEEE 802.3

      Transmission rate: 1000Mbps

      Work mode: Full-duplex / half-duplex

      Connector: RJ45



      Console interface:

      Standard: RS232-C

      Rate: 9600bps

      Data format: Data bit: 8, no parity check, stop bit 1, and no data stream control

      Connector: RJ45



      Others

      Dimension: 83.5(W)×35(H)×124.5(D) (mm)

      Power supply: 220V AC/ -48V DC optional

      Consume: < 3.5W (standalone), < 3W (card)

      Environment:

      Operating temperature: -5°C~+45°C

      Store temperature: -20°C~+70°C

      Relative humidity: 5%~95% no coagulation



      Order information



      TP

      Optical Interface

      Transmit Distance

      Fiber mode

      Power Supply

      Remark

      HC-ICE03-GE

      RJ45

      SC

      20Km

      40Km

      60Km

      Single fiber

      220V AC


      FC

      Double fiber

      -48V DC
