    HC-COMM 18 slots 4U/7U chassis Overview  HC-COMM can support 15 function cards, 2 power supply card (1 redundant module) and one management card. This device just takes out the network

    1. Detailed information

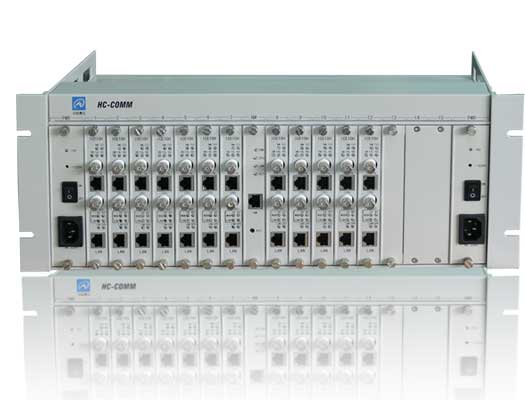

    HC-COMM 18 slots 4U/7U chassis

    Overview
    HC-COMM can support 15 function cards, 2 power supply card (1 redundant module) and one management card. This device just takes out the network management function from the Multi-service Access Platform to work as a management platform. It can manage all the cards inside and devices which connect to the platform at the remote side by the NM software--- HCView. All the cards finish their function separately by themsleves, the HC-COMM chassis only provide power supply and mass management. By this device, user can save much space and power supply node.

    There is two types of HC-COMM, 4U high and 7U hing for different capability requirement, it supports Huachentel all series devices, such as Optical Transmission Series, Media Convertor Series, Digital Cross-connect Device Series, Interface Convertor Series, Voice and other products’ card type.



    Features

    Redundancy:
    Provide power supply 1+1 redundancy


    Network management:
    Management protocol: SNMP
    NMS: HCView

    Power Requirement:
    DC: -48V (-36~-72VDC)
    AC: 220V

    Environment:
    Operating temperature: 0°C
    +40°C
    Store temperature: -20°C
    +70°C
    Relative humidity: 5%
    90% no coagulation


    Cards

    Description

    Port Quantity

    PWR-DC

    DC Power supply card

    /

    PWR-AC

    AC Power supply card

    /

    MCUR

    NM card with a 512×512 cross-connect matrix, 2 ×E1 ports, one NM port and one console port

    2 ×E1

    MCUO

    NM card with a 1024×1024 cross-connect matrix, one optical port, one console port

    1×Optical

    E1

    E1 interface card

    1

    FXS-4

    Voice card for subscribe

    4

    FXS-8

    Voice card for subscribe

    8

    FXS-10

    Voice card for subscribe

    10

    FXO-4

    Voice card for PABX

    4

    FXO-8

    Voice card for PABX

    8

    FXO-10

    Voice card for PABX

    10

    E&M

    2/4 wire E&M interface card

    4

    4LL

    2/4 voice band lease line interface card

    4

    NB

    Ethernet Card

    1

    E1NB

    E1 card with Ethernet port, provide bypass data channel from E1 link

    1+1

    V.35

    V.35 dara card

    1

    V.24A

    V.24 asynchronous data card

    4

    DSLE1

    G.SHDSL modem card

    1
